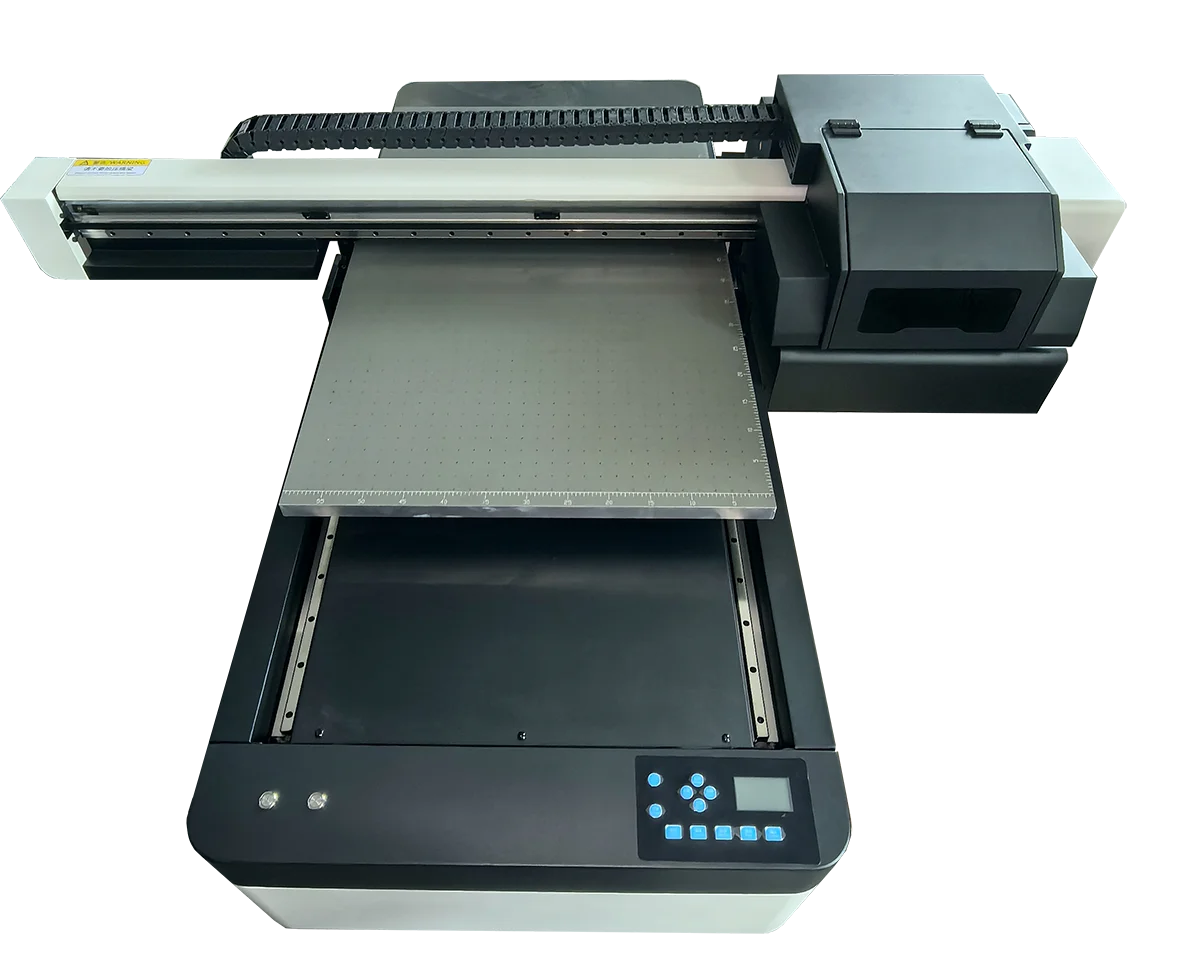

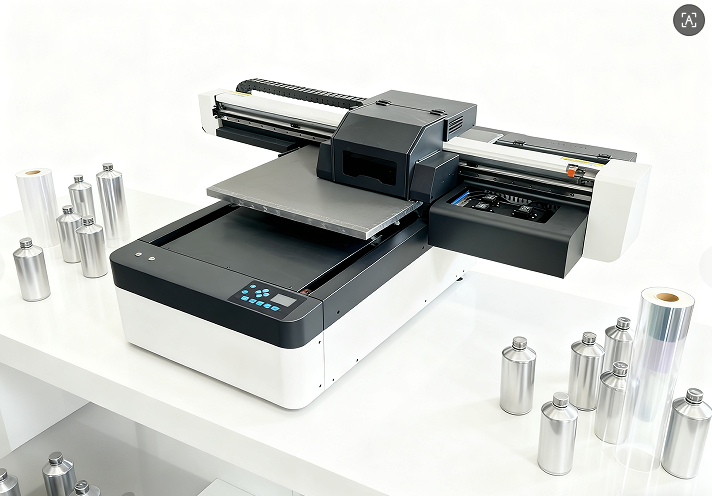

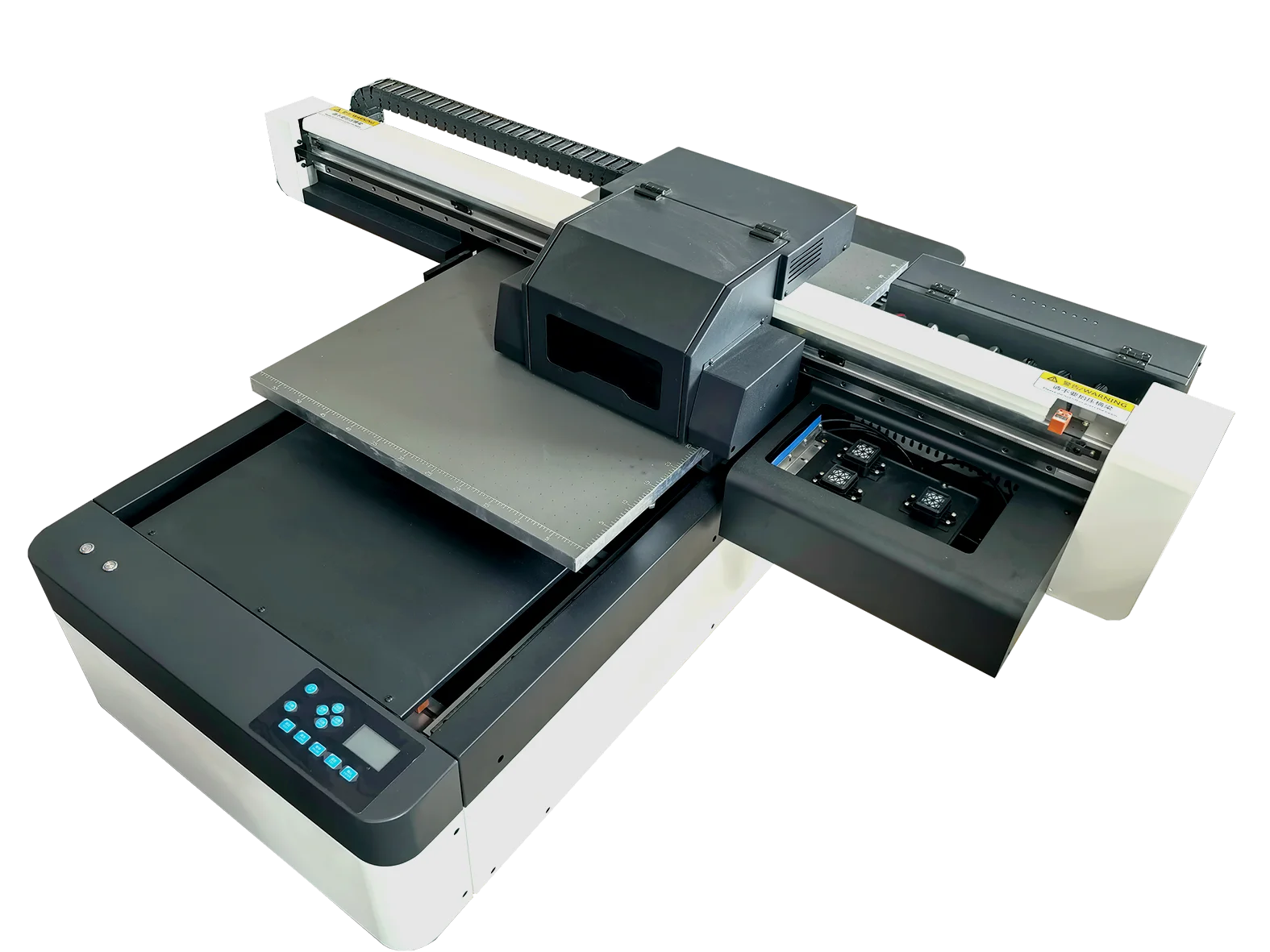

Newest 6090 UV Flatbed Printer Digital 3D Printing on Glass Ceramic Tile Acrylic With Varnish

ERA SUB presents the Newest 6090 UV Flatbed Printer, a reliable and versatile solution for high-quality digital printing on a wide range of flat materials. Designed for small businesses, makers, and print shops, this compact yet powerful machine brings professional-level results to glass, ceramic tile, acrylic, wood, metal, and more. With its advanced UV curing system and precise print head technology, the 6090 delivers vivid colors, sharp details, and consistent output for both single items and small production runs.

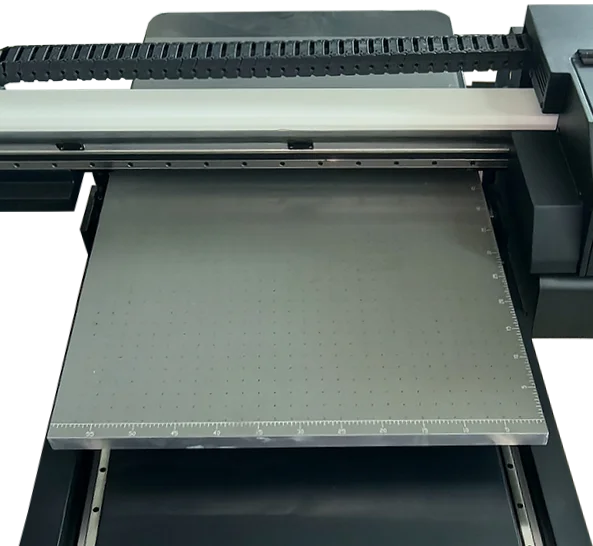

The printer’s flatbed design allows easy placement and secure positioning of irregular or heavy items. Operators can print directly onto rigid substrates up to a convenient size, eliminating the need for transfers or extra steps. The included varnish capability adds a finishing touch, offering glossy or matte protective layers that enhance durability, resist scratches, and bring out deeper color contrast. This feature is ideal for creating decorative panels, custom gifts, signage, and high-end retail displays.

Equipped with a reliable UV LED curing system, the ERA SUB 6090 cures inks instantly as they are applied, reducing smudging and speeding up production. The inks bond strongly to non-porous surfaces like glass and ceramic, ensuring long-lasting prints that resist fading. A white ink option is available for printing on dark or clear backgrounds, enabling true-color reproduction and striking opacity for images on transparent materials like acrylic. The machine supports variable layer printing for light, solid, and tactile effects, letting users achieve simple 3D-like textures and raised finishes.

User-friendly software and straightforward controls make setup and operation efficient for beginners and experienced users alike. Precision rails and a sturdy frame ensure consistent print alignment and repeatable results. Maintenance is simplified with easy access to key components and automated cleaning routines, helping minimize downtime. Safety features and stable power management are built in to protect both equipment and operators.

Whether producing custom glass artwork, personalized ceramic tiles, or premium acrylic signage, the ERA SUB Newest 6090 UV Flatbed Printer is designed to expand creative possibilities while maintaining practical usability. This printer combines strong build quality, flexible substrate support, and finishing options like varnish to deliver professional prints with minimal hassle. For businesses seeking to add direct-to-substrate UV printing capability, the 6090 offers a compact footprint, dependable performance, and clear output quality that helps stand out in today’s competitive market

Model	UV -6090
Printhead	UV -6090-3H -I3200
Printing Size	600mm×900mm
RIP Software	Maintop/Photoprint
Max Resolution	720×1440DPI
Printing Thickness	0mm-150mm
Power	550W、650W
Voltage	110V - 220V
Ink type	UV ink
Weight	220KG、240KG
Printing progress	720X1440DPI
Environment	15~30℃ 20~80RH
Power	550W
Document format	PDF/JPG/TIFF
Machine size	1550mm×1410mm×580mm、1550mm×1680mm×660mm
Packing size	1640mm×1545mm×795mm、1840mm×1700mm×840mm
Ink Color	(C M Y K Lc Lm W1 W2) - C M Y K Lc Lm W1 V1
Printing Speed	6Pass 4m²/8Pass 3m²/12Pass 2m²
Operating System	Win7/Win8/Win10 - 64bit
Printing Material	Glass, Plastic, Acrylic Metal, Wood, etc
