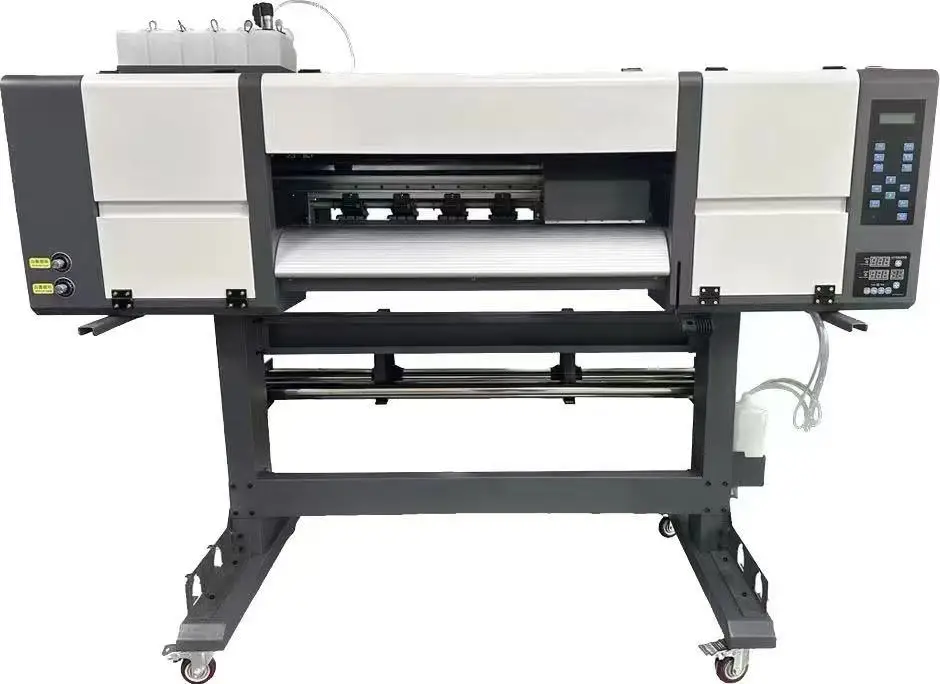

ERA SUB’s Double I3200 60cm Size T-Shirt DTF Printer with Heat Press Machine
Meet the ERA SUB Double I3200, a reliable 60cm DTF (Direct to Film) printer paired with a matching heat press machine, designed to make printing custom t-shirts simple, fast, and affordable. Built for small businesses, hobbyists, and print shops, this system delivers high-quality prints on a wide range of fabrics and surfaces with minimal fuss.
The Double I3200 offers a spacious 60cm (approximately 24 inches) print width that fits most standard t-shirt sizes and small batch runs. Its dual-head design speeds up production, giving you faster output without sacrificing print clarity. The printer uses DTF technology, which lays down vivid, full-color inks onto a film. These prints peel cleanly and transfer smoothly, producing soft-feel, durable designs that resist cracking and fading after repeated washes.
ERA SUB built the Double I3200 with user-friendly features in mind. The control panel is simple and intuitive, so operators can start jobs quickly. The printer supports a variety of file formats and integrates easily with common RIP software, making color management and layout straightforward. Maintenance is simplified by accessible print heads and a clear ink system, reducing downtime and keeping your workflow moving.
Included with the DTF printer is an ERA SUB heat press machine tuned for optimal transfer performance. The press delivers even heat and pressure across the entire print area, ensuring consistent adhesion and vibrant results. Adjustable temperature and pressure settings let you fine-tune transfers for different fabric types like cotton, polyester, blends, and more. The sturdy build of the press ensures reliable, long-term use for daily production.
Together, the Double I3200 and heat press form a compact production line that occupies minimal space while offering big output. The system is ideal for custom t-shirt shops, event merch, promotional items, and on-demand printing. You can produce everything from single personalized tees to small batch orders with quick turnaround times.
Safety and consistency are key priorities. ERA SUB designed both machines with stable frames and secure heating elements to ensure safe operation. The print quality shows excellent color vibrancy, fine detail reproduction, and smooth gradients—perfect for logos, photos, text, and intricate designs.
The ERA SUB Double I3200 60cm Size T-Shirt DTF Printer with Heat Press Machine gives you an efficient, easy-to-use solution for high-quality textile printing. It balances speed, durability, and simplicity, making it a practical choice for anyone looking to expand or start a custom apparel printing operation

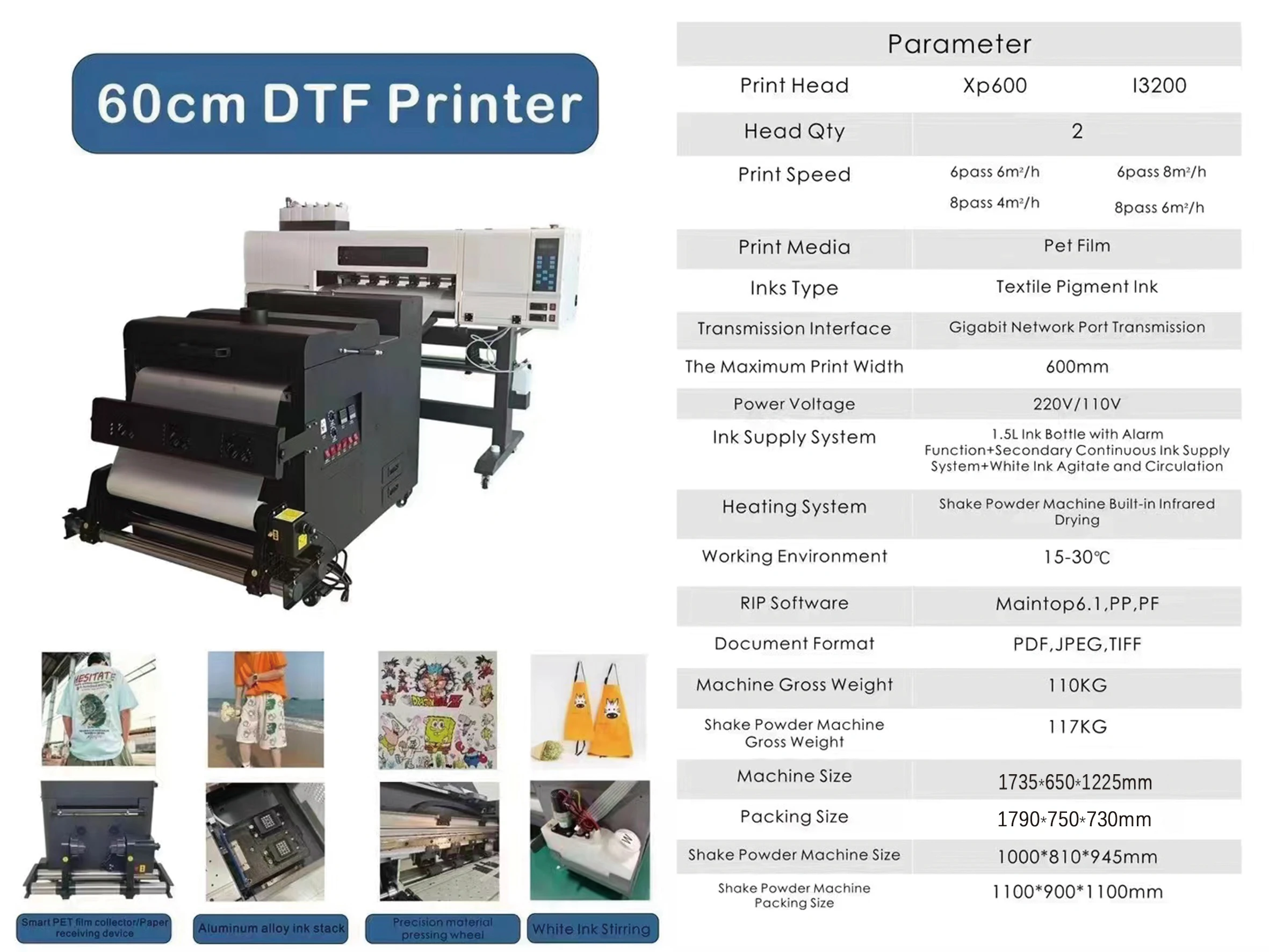

Product Mmdle |
DTF 2H i1600 |
Nozzle Modle |
i1600 XP600 |
Nozzle Quantity |
2 |
Priting Speed |
4PASS 14㎡/h 4PASS 7㎡/h
4PASS 10㎡ /h
6PAss 5㎡/h
6PAss 8㎡/h
|
Printing Medium |
Dtf membrane |
Printing width |
0mm-650mm |
Ink type |
Dtf ink |
Ink color |
C, m, y, k + w |
Print size |
600mm |
Power supply voltage |
220v/110v, 50/60hz |
Power |
450w |
Printing accuracy |
720×1440 dpi |
Working environment |
Temperature 15-30℃, humidity 20-30% |
rip software |
Maintop6.1/photoprint |
Document format |
jpg/tiff/pdf |
Transmission interface |
Gigabit network interface |
Machine size |
1270mm×650mm×1225mm |
Wooden box size |
1790mm×750mm×1300mm |
Packaging weight |
153kg |
Print head model |
i3200, xp600 |
Number of print heads |
2 |
